Green Lasers

BEA Lasers offers green lasers diode modules in two different styles.  The single mode 520nm, or the DPSS 532nm laser.  The green laser appears 7 times brighter to the human eye and are used for alignment in the brightly lit areas of your plant.



Ruggedized Lasers

BEA Lasers packages their laser diode modules in some very rugged housings with connectors for the harsh environments.



Red Lasers

BEA Lasers offers red laser diode modules in two different wavelengths.  The 650nm is ideal for a more budget application where the 635nm is more visible but has a higher price point.

Products

Accessories

BRACKETS

METERS

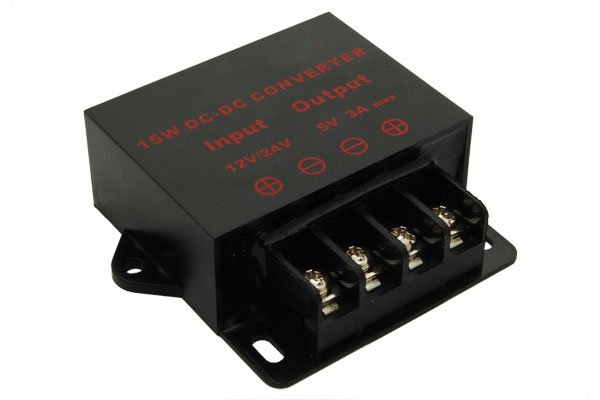

REGULATORS

BEA Lasers offers brackets in three different styles for our industrial laser diode modules.  Look over the selection and find one that suites your application.



Coming Soon



BEA Lasers offers 4 different styles of power supplies.



Catalogs

The highest quality laser diode modules at a reasonable cost ... this is BEA Lasers' commitment to you.



Our team of applications engineers and sales associates, with many years of experience in the field of optics and photonics, will work closely with you to find a solution that meets your needs -- customized or from stock.

MIL Series

MIL RA SERIES

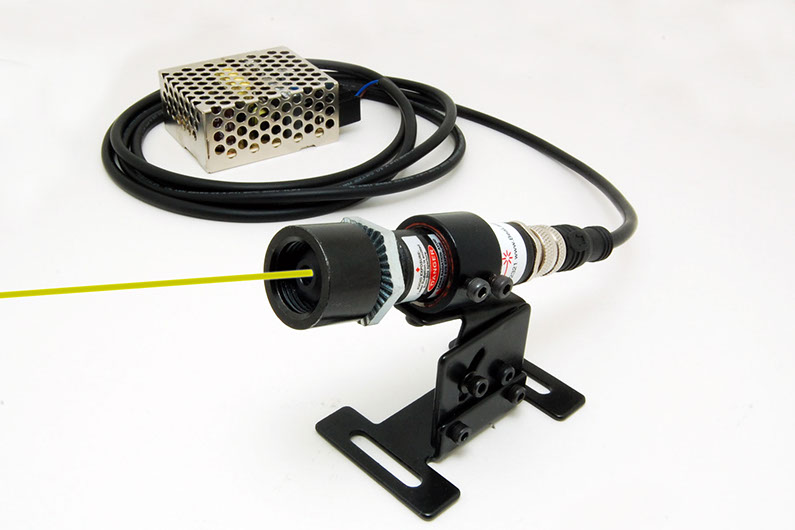

Based around a 650nm (red), or 532nm (green) 1, 3, or 5mW laser, the main features of this



system are:



1. 12mm connector fitted to a black zinc coated, stainless steel laser diode housing, with your choice of red or green laser diode.



2. Your choice of optics: Standard round, line, cross (no additional charge) or a target (additional $70.00).



3. Black PVC coated 2-meter long cable with your choice of straight, or 90 degree connector.



4. Optional stainless steel mounting bracket.



5. 85Vac-264Vac switching power supply.

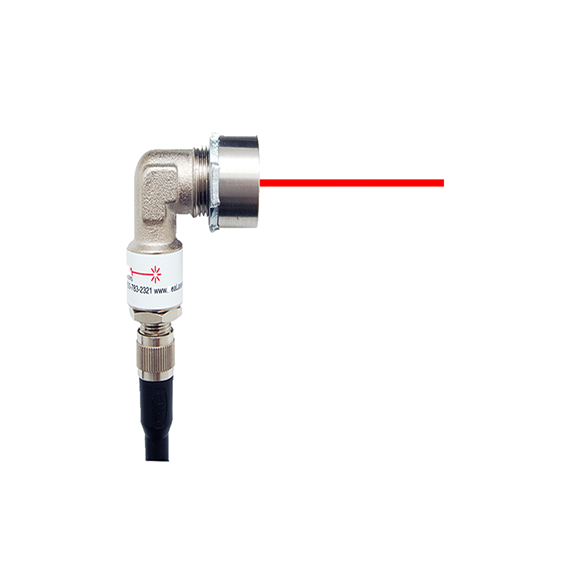

Available in either 635nm (red) or 515nm (green) direct diode laser. The 90° style housing is



designed to fit into the tighter spaces where a rugged laser is needed. Some of the main features of this laser diode



module are:



1. 635nm (red), 515nm (green).



2. <1mW, <3mW, or <5mW output power.



3. Nickle plated brass housing.



4. 2 meter long PVC jacketed cable.



5. Connector from laser diode housing to cable.



6. 85Vac-264Vac switching power supply.



7. 90° 16mm diameter x 50mm x 50mm.



8. Dot, or line optic.

GPL Series

MIL Compact  Series

A welcome addition to BEA's MIL series, this compact laser only occupies 1.5 inches of valuable space and boasts a right-angle mounting style. Some of the main features of the MIL Compact are:



1. 635nm (red), 515nm (green).



2. <1mW, <3mW, or <5mW output power.



3. Nickle plated brass housing.



4. 2 meter long PVC jacketed cable.



5. Connector from laser diode housing to cable.



6. 85Vac-264Vac switching power supply.



7. 90° 16mm diameter x 50mm x 50mm.



8. Dot, or line optic.

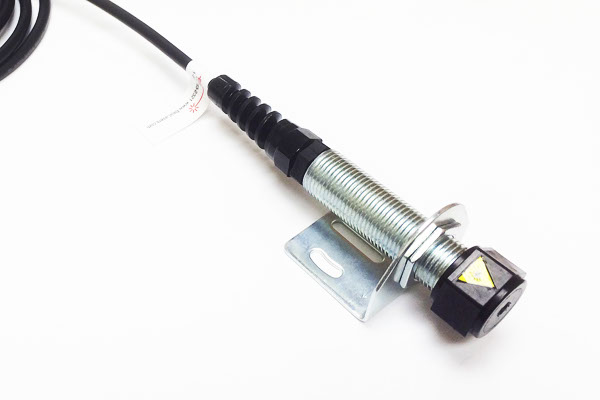

Based around a 650nm (red), or 532nm (green) 5mW laser, the main features of this new system are:



1. 635nm (red), or 515nm (green).



2. <5mW output laser diode module.



3. Clear zinc plated CRS (Cold Rolled Steel.



4. 2 meter long PVC jacketed cable.



5. Cable gland from laser diode housing to cable, USB connector.



6. 120Vac-5VDC USB power supply.



7. 3/8 NPT threaded body x 2.5" Length.



8. Dot, or Line optic.

MIC  Series

SEN  Series

Based around a 650nm (red) 1, 3, or 5mW laser, the main features of this system are:



1. 1/8" NPT fully threaded 2.5" Long long black zinc-coated brass tube (sensor type housing).



2. 8mm threaded cable connector for reliable power connections.



3. Detachable brass end cap / optics holder (featuring multiple target choices).



4. Optional stainless steel mounting bracket.



5. Optional power supply.

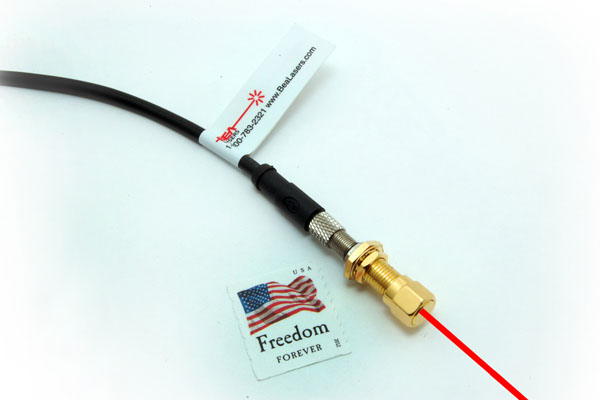

Based around a 650nm (red) 1, 3, or 5mW laser. The main features of this system are:



1. 1/4"-36 fully threaded 20mm long brass tube (sensor type housing).



2. 5mm threaded cable connector for reliable power connections.



3. Detachable brass end cap / optics holder (line or cross hair).



4. Optional stainless steel mounting bracket.



5. Optional power supply.

328-5  Series

328-11  Series

Yellow Sub laser level



1. 650nm (red) laser.



2. <3mW output laser diode module.



3. Aluminum housing.



4. Heavy duty magnets for mounting.



5. Batteries included.



6. Bubble level for positioning.



7. 75mm x 33mm x 20.5mm.



8. Dot, or Line optic.

Yellow Torpedo laser level



1. 650nm (red.)



2. <3mW output laser diode module.



3. Aluminum housing.



4. Heavy duty magnets for mounting.



5. Batteries included.



6. Bubble level for positioning.



7. 128mm x 22mm x 27mm.



8. Dot, or line optic.

150 Series

160 Series

1. 650nm (red), laser.



2. <1mW, <3mW, or <5mW output.



3. 3 element glass lens, adjustable focus.



4. Beam size, 15.7cm @ 1 meter.



5. 3-6VDC operating voltage.



6. Anodized Aluminum housing.



7. 12.7mm diameter x 51mm length.



8. Dot, or Cross Hair optic.

1. 650nm (red).



2. <1mW, or <5mW output.



3. Adjustable focus.



4. Plastic lens.



5. 3-6VDC operating voltage.



6. Anodized Aluminum housing.



7. 12mm diameter x 29mm length.



8. Dot, Line, or Cross Hair optic.

201 Series

166 Series

1. 650nm (red).



2. <1mW, <3mW, or <5mW output.



3. Plastic lens.



4. Operating voltage 3VDC.



5. Powder coated brass housing.



6. Lead length 250mm.



7. 10.5mm diameter x 32.5mm length.



8. Dot optic.

1. 650nm (red).



2. <1mW output.



3. Plastic lens.



4. Operating voltage 3VDC.



5. Brass housing.



6. Lead length: Pins.



7. 4.0mm diameter x 10mm length.



8. Dot optic.

167 Series

170 Series

650nm (red).



1. <3mW, <5mW output.



2. Plastic lens.



3. Operating voltage 3VDC.



4. Brass housing.



5. Lead length: 100mm.



6. 4.0mm diameter x 10mm length.



7. Dot optic.

1. 650nm (red).



2. <1mW, <3mW, or <5mW output.



3. Fixed focus, 4x8mm @ 10 meters.



4. Plastic lens.



5. 3-5VDC operating voltage.



6. Brass housing.



7. 7mm diameter x 21mm length.



8. Dot optic.

722 Series

742 Series

1. 532nm (green).



2. <1mW, <3mW, or <5mW output.



3. Fixed focus.



4. Glass lens.



5. 3.3VDC operating voltage.



6. Brass housing.



7. 12mm diameter x 37mm length.



8. Dot, Line, or Cross Hair optic.

1. 532nm (green).



2. <1mW, <3mW, or <5mW output.



3. Fixed focus.



4. Glass lens.



5. 3.3VDC operating voltage.



6. Aluminum heat sink housing.



7. 12mm diameter x 37mm length.



8. Dot, Line, or Cross Hair optic.

LGR Series

MR Series

1. 515nm (green), 635nm (red), or 650nm (red).



2. <1mW, <3mW, or <5mW.



3. Fixed Focus.



4. Plastic lens.



5. Dot, or line pattern.



6. 3-5VDC operating voltage.



7. 15-13mm diameter x 29mm.

1. 650nm (red).



2. <5mW.



3. Fixed Focus (17 inches), or adjustable focus on dot version.



4. Plastic lens.



5. Dot, line, or cross hair pattern.



6. 5VDC operating voltage.



7. 10mm diameter x 30mm Length.

Brackets

OEM Lasers Designed to Meet or Exceed Your Application Requirements



Working within your requirements is what BEA Lasers does best. We just need a few simple questions answered, and maybe a drawing:



  1. Wavelength option: 635, 650nm (Red), 520, 532nm (Green), 405. 445nm (Blue) 850nm (IR)
  2. Optical output power: Up to 300mW
  3. Working voltage: 3, 5, 6, 12, 24VDV
  4. Dot, Line, Cross-Hair laser pattern
  5. Working distance
  6. Beam size at working distance
  7. Housing size requirements
  8. Continuous wave, modulation, variable output
  9. Fiber coupled laser: 105, 125, 170, 200µm (fiber core)
  10. Quantity and price





With your approved laser design, BEA Lasers will manufacture a high-quality laser to spec for your evaluation and approval. BEA Lasers works with the end user to come in on budget and on time with a high-quality laser. BEA Lasers looks forward to working with you to design a laser to fit your application.
